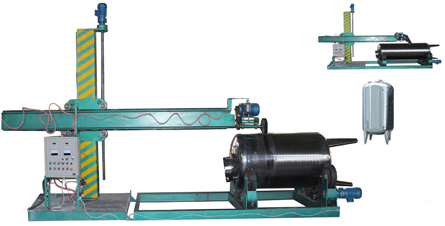

  • Tank Polishing Mahicne
  • Categories:Polishing Machine
  • Application:Mainly used in the stainless steel vessel, container’s inside or outside from 60-400 mesh, with mirror polishing or flat gloss.
    Advantage:1.Using cloth emery roll, low cost and high precision, mirror polishing.the speed is two to four times of the manual polishing.
    2.Polishing speed: 8-10m2 one time
    3.competely solve the low efficiency, uneven, poor precision which caused by the manual polishing, roughness can be as high as 0.28 μ m
    4.simple in structure, easy coperation, economical and parctical.
  • /xsms/html37/uploadfile/20100627164026451.swf

    Model

    External range

    Inner range

    Length

    Loading weight

    GP-300F

    φ700-φ3000mm

    φ700-φ3000mm

    2500mm

    1000Kg



    Lift’s power

    Xarm’s power

    Wheel shelf’s power

    Polishing power

    GP-300F

    0.55Kw

    0.12Kw

    0.75Kw

    5Kw

    Speed adjustment

    Constant speed

    variable frequency

    variable frequency

    Constant speed



    Size

    Total weight

    GP-300F

    4900*1500*3050mm (L*W*H)

    ≈1500Kg

    Polishing material

    Cloth wheel nylon fiber wheel and flap wheel(sand belt for optional)

    power source

    Three phase four-wire  380V/50Hz

    Air supply

    0.4-0.6MPa
